TFC4-Fuel Systems
Nerd Rods 32 Gallon Fuel System for LS Motors and the TFC4 frames.
Note, this section will be getting lots of revisions in the near future. Keep an eye for for them
(Updated - Mar 28, 2017)
Fuel Tank Only,

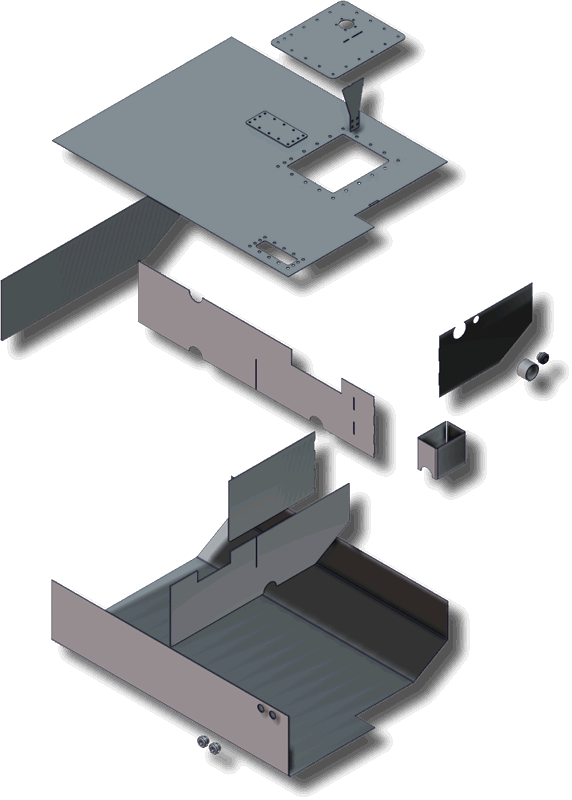

Weld it Yourself Kit, in Aluminum - Stage 1
TFC4-FS-S1-AL
Kit Includes
- 32 Gallon Aluminum Fuel Tank
- Un Welded
- .090" 5025 Aluminum
- Pre Bent
- Self-Clinching Nut for the tank door
- 3/8's NPT Bungs, In, Out and Vent
- Set up for 0-90 Ohm Sending Unit
- Lid Fasteners
- Note, This is not as easy as our frames. You need lots and lots of clamps and a large fabrication table to complete the tank, push and pull parts around to make it all fit and clear. Recommended only for shops and pro fabricators. No pump, lines or other components are included, just the aluminum and the tank to frame mounting hardware.
- Note, Mounting hardware to the frame is not included.
$ 825.00
Stage 1 Fuel Systems, Stage 2
TFC4-LSFS-S2
Kit Includes
- 32 Gallon Aluminum Fuel Tank
- Fully Welded
- Powder Coated
- Areomotive Stealth 340 LPH Pump (700 AN HP)
- 0-90 Ohm Sending Unit
- Stainless Steel Hard Lines
- AN-6 Braded Steel Lines
- Tank to frame
- Frame to engine
- Areomotive Adjustable Regulator AN-6
- Steel Tank to Frame Cradle
- AN-6 Fittings
- Mounting Hardware
Supplied not installed to the frame
$2,262.05
Stage 1 Fuel Systems, Stage 3
TFC4-LSFS-S3
Kit Includes
- 32 Gallon Aluminum Fuel Tank
- Fully Welded
- Powder Coated
- Areomotive Stealth 340 LPH Pump (700 AN HP)
- 0-90 Ohm Sending Unit
- Stainless Steel Hard Lines
- AN-6 Braded Steel Lines
- Tank to frame
- Frame to engine
- Areomotive Adjustable Regulator AN-6
- Steel Tank to Frame Cradle
- AN-6 Fittings
- Mounting Hardware
